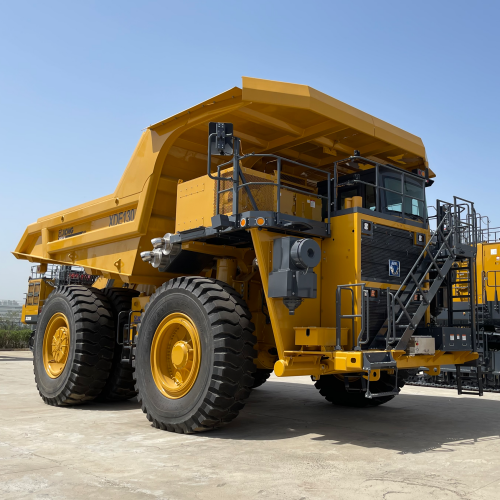

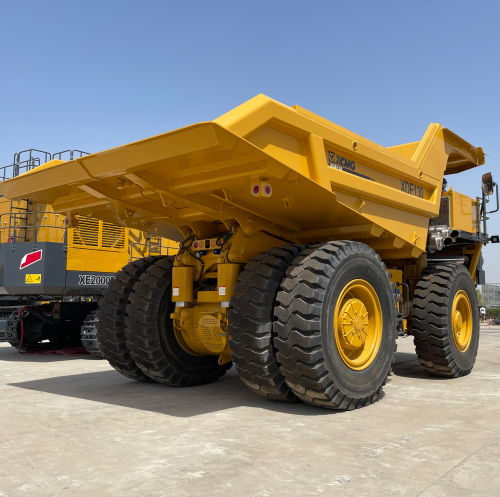

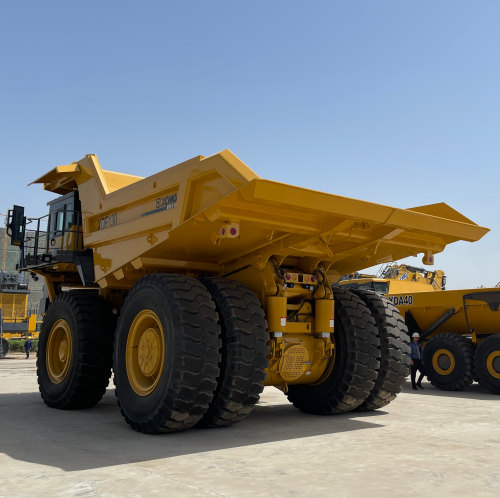

XDE130 Mining Dump Truck, 4X2 type, Double Axles Rigid Dump Truck, Electric-drive wheel, Mercides BENZ MTU Engine, 1300hp power. 120T load. |
|
|
Main Specification |
|
|
Overall Truck Length |
12000mm |
|
Overall Truck Width |
6790mm |
|
Front Canopy Height |
6100mm/ 11310mm(lift) |
|
Tire Center Distance |
Front 4695mm; Rear 3930mm |
|
Wheel base |
4900mm |
|
Gross Vehicle Weight (G.V.W) |
205000KG |
|
Payload |
120000kg |
|
Empty vehicle weight |
85000kg |
|
Weight distribution (unload) |
Front axle 42500kg (50%) ; rear axle 42500kg ( 50%) |
|
Weight distribution ( loaded ) |
Front axle 67650kg (33%) ; rear axle 137350kg (67%) |
|
Engine |
MTU16V2000C66 |
|
POWER |
970/1800 kw/rpm |
|
Max. torque |
5288/1500 N.m / rpm |
|
Tire |
30.00R51 |
|
Max. Vehicle speed |
50km/h |
|
Min. Turning diameter |
23M |
|
Max. Gradeability |
20% |
|
Min. Gound Clearance |
570mm |
|
Loading height |
4650mm |
|
Lifting time |
16s |
|
Fuel tank |
1200L |
|
Hydraulic tank |
650L |
|
Cooling system |
330L |
|
Engine oil |
130L |
|
BODY |
Standard flat loading 60m3 2:1 Stacking 73m3 |
