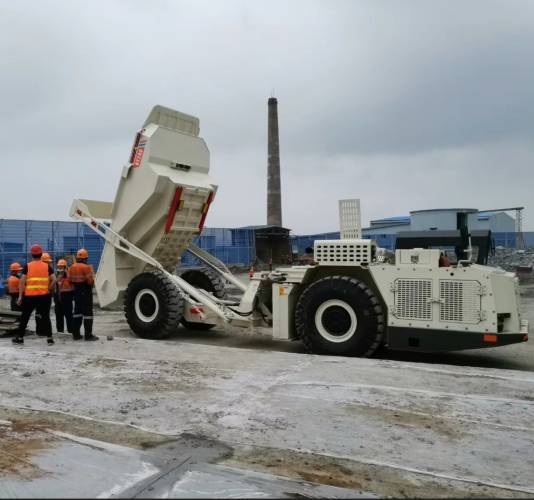

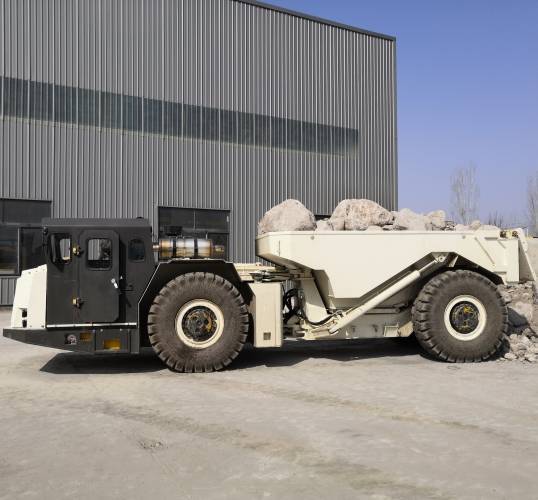

UT200H is an under-ground dumping truck with a tramming capacity of 20t.
It can be suitable to 3.5 × 3.5 m tunnel cross-section. The product is a Sandvik transfer product, the prototype is EJC20.
The maximum climbing angle can be matched with our 3m³ or 4.5 m³ under-ground loader.
It is an ideal choice for small and medium-sized ramps and tunnelling transportation.
|
Capacities |
|
|
Tramming Capacity |
20000 kg |
|
Standard Box Volume |
10 m³ |
|
Max. Tractive Force |
299 kN |
|
Max. Lifting Force |
220 kN |
|
Main Dimensions& Weight |
|
|
Dimensions(W×H×L) |
2250×2445×8740mm |
|
Dump Box Height |
2256mm |
|
Dump Height |
5132mm |
|
Vehicle Weight |
22500kg |
|
Front / Rear Axle |
16601kg / 5899kg |
|
POWER TRAIN |
|
|
Engine |
|
|
Diesel Engine |
Volvo TAD1150VE , Tier3 |
|
Output |
235 kW |
|
Max. Torque |
1581 N.m |
|
Number of Cylinders |
6 |
|
Displacement |
10.8L |
|
Cooling System |
Water cooled |
|
Combustion Principle |
Turbocharging |
|
Air Filtration |
Donaldson, Dry type |
|
Electric System |
24 V |
|
Emissions |
Tier III, Euro Stage 3 |
|
Exhaust System |
Exhaust pipe with dust prevention purifier |
|
Average Fuel Consumption |
25-35 L/h |
|
Fuel Tank Capacity |
325L |
|
Converter & Transmission |
|
|
Converter |
DANA C5000 Series |
|
Transmission |
DANA 36000 |
|
Axle |
|
|
Front Axle |
DANA 19D |
|
Rear Axle |
DANA 19D |
|
Tires |
|
|
Tire Size |
12.00-24 |
