Using SHACMAN 6X4 Wide chassis, stronger and higher carrying capacity;
Adopting with CUMMINS 385HP power engine, Allison 4500ORS auto-gearbox and MAN Axles, the truck has excellent transportation efficiency, comfortable operability, low maintenance cost, long service life and large loading volume. It is the best choice for open-pit mine works.
Please check the following specifications:
|

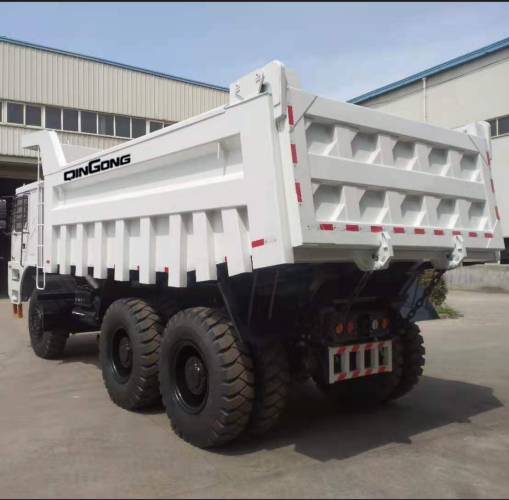

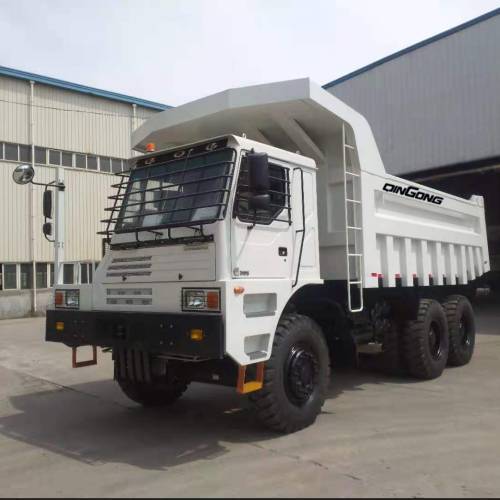

QINGONG 6X4 Mining Dump Truck, Cummins 385hp engine, Allison Auto-gearbox, 60T load. |
||
|
Engine |
CUMMINS QSM11-C385, DIESEL ENGINE;
Power: 385hp@1900rpm; Max. Torque: 2010N.m ; Straight line 6 CYLINDER in-line, turbo-charging & intercooling Displacement: 10800L, Engine taker capacity: 380L. |
|
|
Transmission |
ALLISION 4500ORS-PR, Auto-transmission. |
|
|
Front Axle |
13T loading front axle, MAN technology |
|
|
Rear Axles |
Casted axle housing, central single reduction with planetary wheel reduction (hub reduction)， and differential locks between axles. 2*25T rear axles, MAN technology. |
|
|
Suspension |
Leaf spring type. Front 100mm width, 13pcs/ Rear 120mm width, 12pcs Main shock absorber is SHACMAN made, 25mm overstriking rod |
|
|
Chassis |
Special mine truck frame. Three levels (10+8+6) |
|
|
Steering |
ZF technology , hydraulic steering with power assistance |
|
|
Brakes |
Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: JACOB brake Brake pipe: VOSS joint |
|
|
Wheel & Types |
Rims: 10.2-25 10 hole-steel Types 14.00-24 heavy tires with one spare tires. |
|
|
Driver’s cab |
Mine single side cab, all steel forward control, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, sun visor, and adjustable steering wheel, air horn, air conditioner, safety belt, adjustable roof flap. |
|
|
Body box: |
Dimension: 5600x3000x1500/1800 mm 25-30m3 volume Thickness: floor 14mm, side 10mm, front 10mm Material: high tensile steel. 16Mn
Lifting type: front lifting, DeppKaler |
|
|
Dimensions |
Wheel base Overall Dimension |
3750+1560mm 8520×3255×4000(mm) |
|
Weight |
Permissible loading capacity Dead weight |
60000kg 23000kg |
