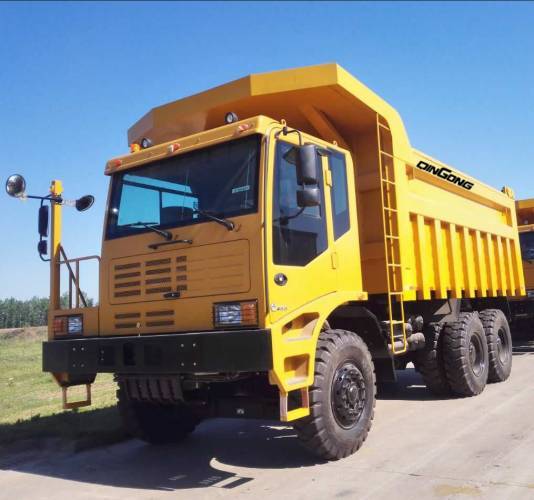

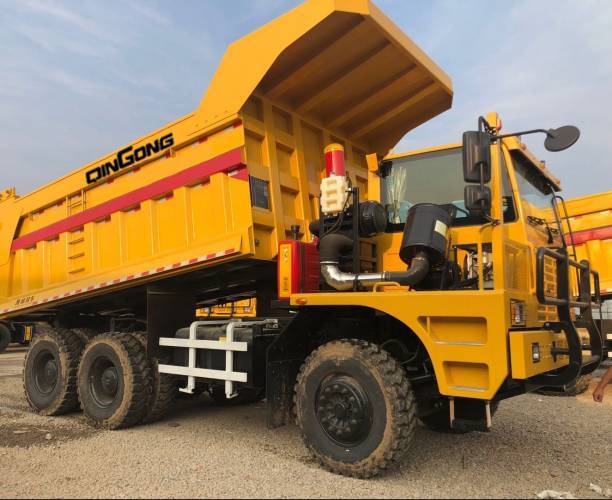

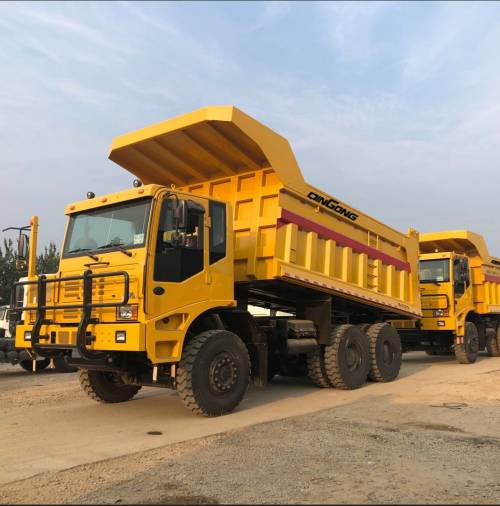

80T 6x4 QINGONG Mining Dump Truck / Tipper
Using SHACMAN 6X4 Wider chassis, stronger and higher carrying capacity;
Adopting with CUMMINS 420HP power engine, FAST 8DS240A Manual gearbox and MAN Axles, the truck has excellent transportation efficiency, comfortable operability, low maintenance cost, long service life and large loading volume. It is the best choice for open-pit mine works.
Please check the following specifications:
|
QINGONG 6X4 Mining Dump Truck, YUCHAI 480hp Engine, 80T Load, |
||
|
Engine |
YUCHAI YC6K480-GT30, DIESEL ENGINE;
Power: 480hp@1900rpm; Max. Torque: 2200 N.m ; Straight line 6 CYLINDER in-line, turbo-charging & intercooling Displacement: 12.155L, Engine taker capacity: 600L aluminum alloy tanker. |
|
|
Transmission |
FAST 8DS240A Gearbox, MANUAL |
|
|
Front Axle |
25T loading front axle, MAN technology |
|
|
Rear Axles |
Casted axle housing, central single reduction with planetary wheel reduction (hub reduction)， and differential locks between axles. 2*35T rear axles, MAN technology. |
|
|
Chassis |
Special mine truck frame. Three levels (10+8+6) |
|
|
Steering |
ZF technology , hydraulic steering with power assistance. LHD |
|
|
Brakes |
Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: JACOB brake Brake pipe: VOSS joint |
|
|
Wheel & Types |
Rims: 10.00-20 Types 14.00-25 heavy tires with one spare tires. |
|
|
Driver’s cab |
Mine single side cab, all steel forward control, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, sun visor, and adjustable steering wheel, air horn, air conditioner, safety belt, adjustable roof flap. |
|
|
Body box: |
Dimension: 5800x3200x1800mm 33m3 volume Thickness: floor 16mm, side 12mm, front 10mm Material: high tensile steel. T700/NM400
Lifting type: front lifting, DeepKaler-196 |
|
|
Dimensions |
Wheel base Overall Dimension |
3850+1560mm 8970×3504×4250(mm) |
|
Weight |
Max. loading capacity Dead weight |
80000kg 28000kg |
