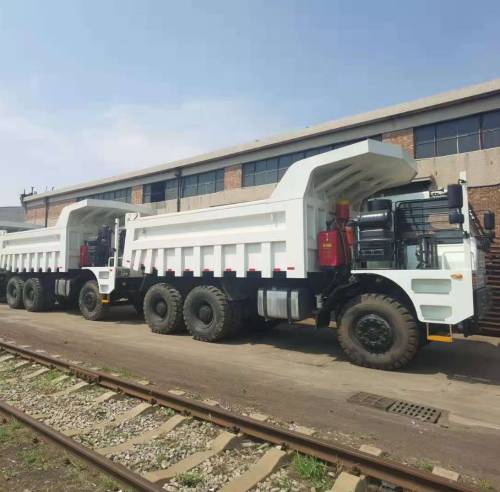

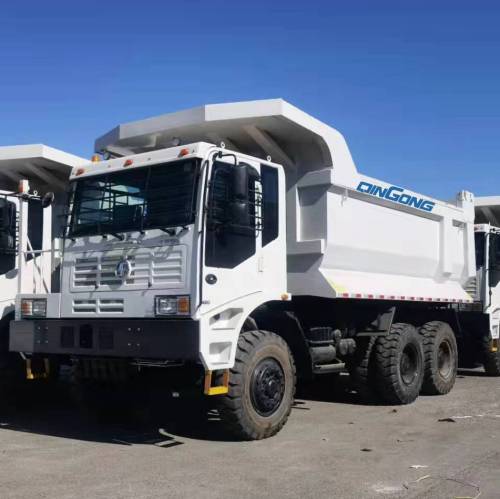

QINGONG 6X4 Mining Dump Truck, Cummins 420hp Engine, ALLISON Auto-gearbox, 90T Load, |
||
|
Engine |
CUMMINS QSM11-C420, DIESEL ENGINE;
Power: 420hp@1900rpm; Max. Torque: 1898N.m ; Straight line 6 CYLINDER in-line, turbo-charging & intercooling Displacement: 10800L, Engine taker capacity: 600L aluminum alloy tanker. |
|
|
Transmission |
ALLISION 4600ORS-PR, Auto-transmission. |
|
|
Front Axle |
19T loading front axle, MAN technology |
|
|
Rear Axles |
Casted axle housing, central single reduction with planetary wheel reduction (hub reduction)， and differential locks between axles. 2*35T rear axles, MAN technology. |
|
|
Chassis |
Special mine truck frame. Three levels (10+8+6) |
|
|
Steering |
ZF technology , hydraulic steering with power assistance. LHD |
|
|
Brakes |
Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: JACOB brake Brake pipe: VOSS joint |
|
|
Wheel & Types |
Rims: 10.00-20 Types 14.00-25 heavy tires with one spare tires. |
|
|
Driver’s cab |
Mine single side cab, all steel forward control, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, sun visor, and adjustable steering wheel, air horn, air conditioner, safety belt, adjustable roof flap. |
|
|
Body box: |
Dimension: 5800x3200x1800mm 33m3 volume Thickness: floor 16mm, side 12mm, front 10mm Material: high tensile steel. T700/NM400
Lifting type: front lifting, DeepKaler-196 |
|
|
Dimensions |
Wheel base Overall Dimension |
3850+1560mm 8970×3504×4250(mm) |
|
Weight |
Max. loading capacity Dead weight |
90000kg 28000kg |
