Using SHACMAN 6X4 Wide chassis, stronger and higher carrying capacity;
Adopting with CUMMINS 540HP power engine, Allison Auto- gearbox and MAN Axles, the truck has excellent transportation efficiency, comfortable operability, low maintenance cost, long service life and large loading volume. It is the best choice for open-pit mine works.
Please check the following specifications:
|

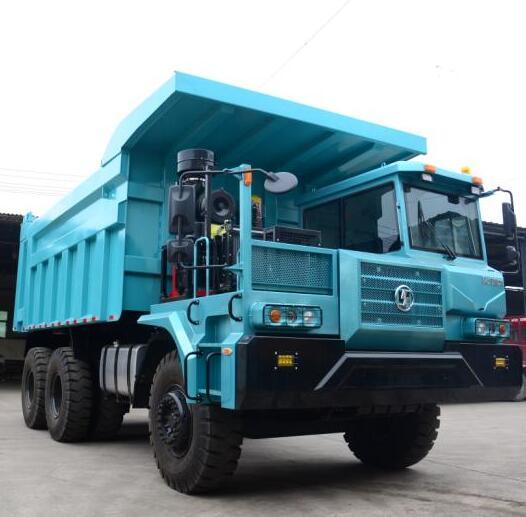

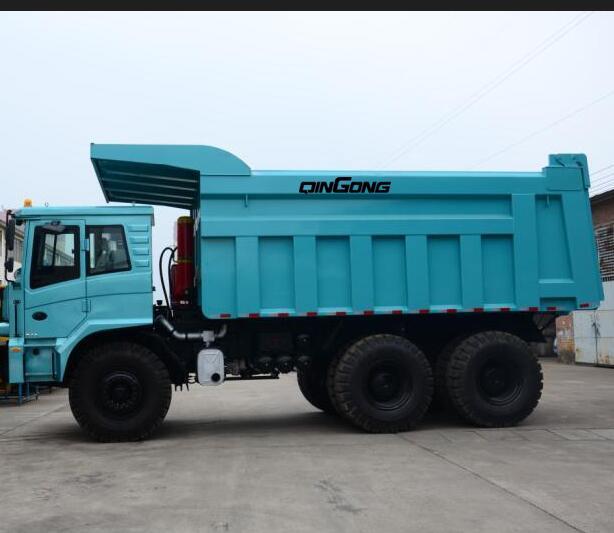

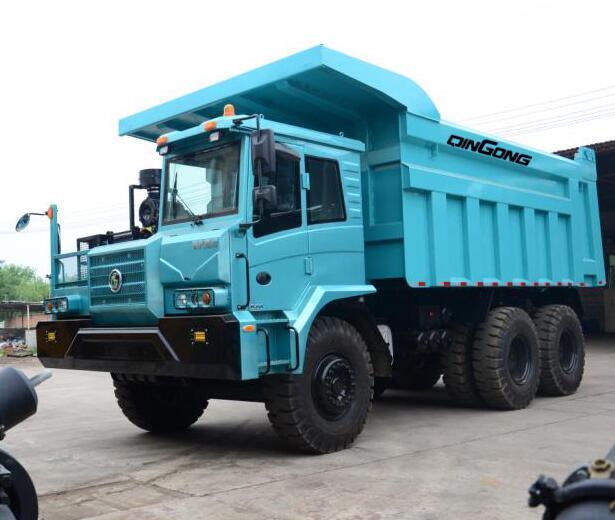

QINGONG 6X4 Mining dump truck, 100T load, Cummins 540hp engine, Allison Auto Gearbox |
||
|
Specifications |
||
|
Dimension parameters |
Overall length |
9060MM |
|
Overall width |
3675mm |
|
|
Overall height |
4230mm |
|
|
Wheelbase |
3850+1750mm |
|
|
Weight parameters |
Total weight |
105000kg |
|
Max. Load |
100000kg |
|
|
No-load weight |
35000kg |
|
|
Dynamic parameters |
Engine model |
CUMMINS Z14-C540-30 |
|
Engine rated power |
397KW/r/min |
|
|
Engine max. torque |
2400/(1100-1500) kw/r/min |
|
|
Drive type |
6*4 |
|
|
Tire |
16.00-25 |
|
|
GEARBOX |
Allison 4800ORS Auto-Gearbox |
|
|
Driving parameters |
Max. vehicle speed |
40km/h |
|
Min. turning diameter |
<13m |
|
|
Max.grade-ability |
>32% |
|
|
Min. ground clearance |
370mm |
|
|
Working parameters |
Loading height |
4230mm |
|
Lifting time |
<20s |
|
|
Maintenance capacity |
Fuel tank |
600L |
|
Hydraulic tank |
120L |
|
|
Cooling system |
40L |
|
|
Engine oil |
44L |
|
|
Gear oil tank |
85L |
|
|
Body Size |
6000*34000*2000mm The framed body welded by NM400 + T700 high-strength wear-resistant steel plate has good structural strength and long service life. Bottom is 16 and side is 12mm, standard load is 40m3. |
|
